Keep your Matrice 30 flying. Non-stop.
The G35-M30 kit drives the DJI Matrice 30 / 30T for 24 h+ continuous flight. It swaps the flight battery for a tool-free airborne module (560 g) and feeds regulated high-voltage DC from the 3.5 kW ground unit, combining the platform’s all-weather ruggedness with unlimited endurance. If ground power is cut, the drone flies and lands normally while the tether auto-retracts; cable break, disconnect or short-circuit trigger instant HV cutoff.
How the G35-M30 keeps power flowing
Ground power
Mains or generator — single-phase 220 VAC, 50/60 Hz.
Ground station
3.5 kW converter, motorized winch, comms, cooling and control in a 9.5 kg case.
High-voltage tether
High-voltage DC over 55 m or 110 m of lightweight cable, auto-retracting.
Airborne module
560 g unit in the battery bay outputs a regulated 25.5 V at 3,000 W.
Matrice 30 + payloads
Camera, searchlight, speaker or drop system — fed continuously.

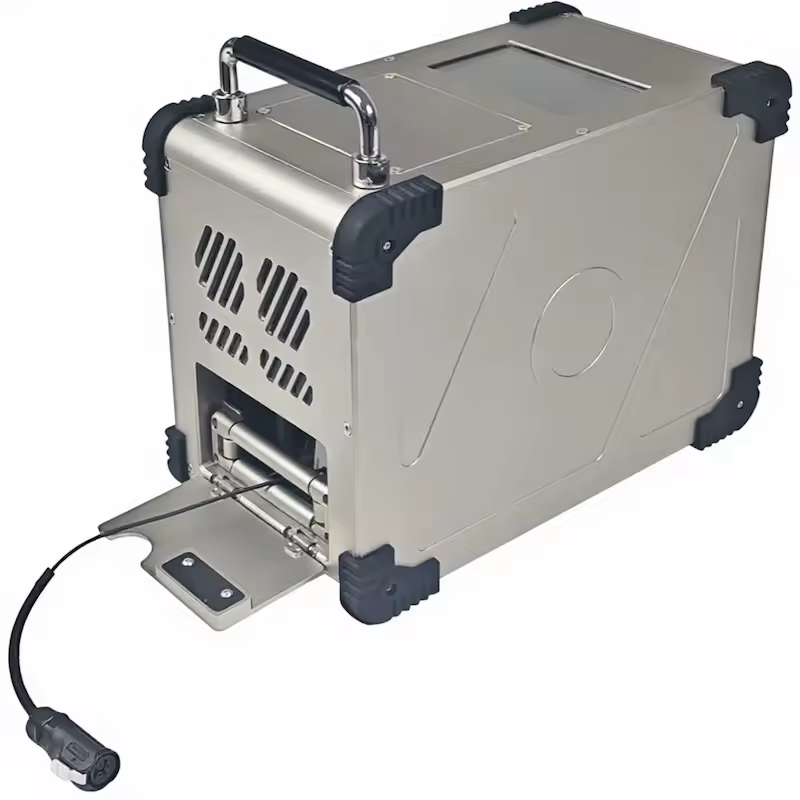

Ground station — G35-M30
The G35-M30 packs a 3,500 W AC/DC converter, servo-driven winch, communication module, cooling system and control electronics into a 9.5 kg tether box. Cable pays out and retrieves adaptively as the aircraft climbs and descends, and the station display, handheld terminal or PC client shows live voltage, current, cable length, runtime and fault records. Over/under-voltage, over-current, over-temp and short-circuit protection auto-recover; power-loss, over-unspool and cable-break protection are built in.

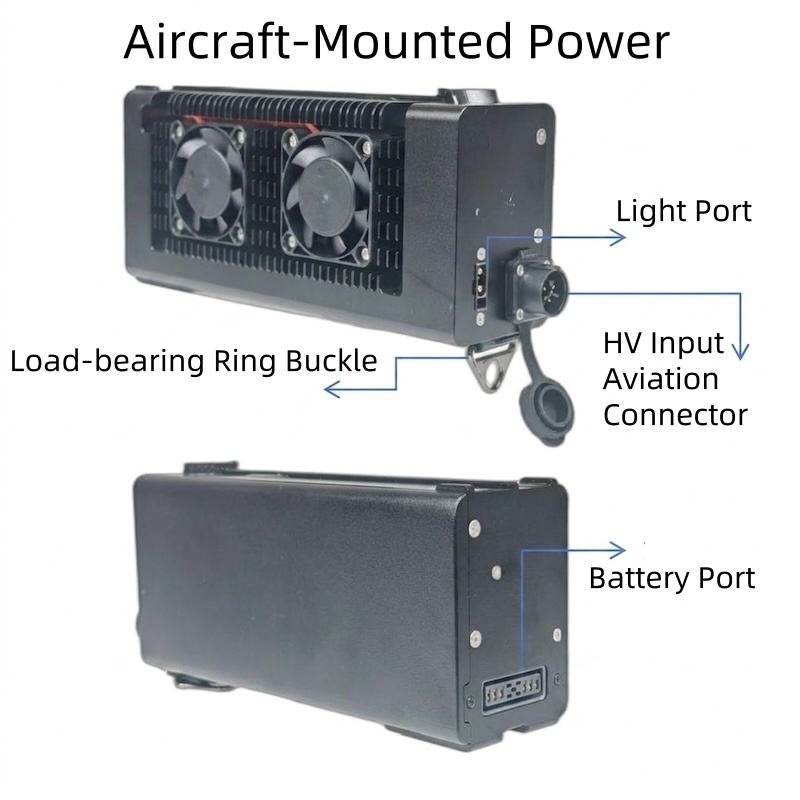

Airborne module — 560 g battery-bay swap
The 560 g module replaces a Matrice 30 / 30T flight battery using the same quick-release interface — tool-free, no drone modification. It converts the high-voltage tether input to a constant 25.5 V output rated 3,000 W (3,500 W peak) that feeds the aircraft and payload ports directly, so onboard packs stay above 90% as a cold backup for the whole flight. IP54 housing; the module reports its own status to the ground station over the tether.

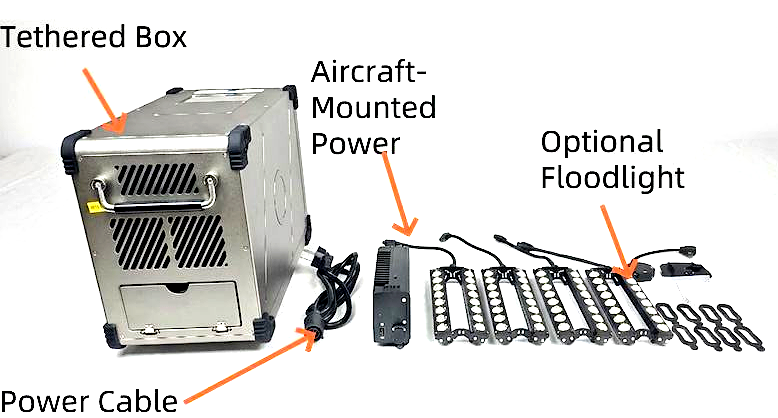

Up close: every part of the kit
